| US$522.00 |
| |
| Replaces: |
| Aqua Power |
5508 / 5509 |
| Barr |
MC-1-77234 / MC-1-77235 |
| GLM |
51237 / 51238 |
| Marine Power |
0999-710 / 0999-712 |
| Mercruiser |
77234B / 77235B |
| Osco |
7234B / 7235B |
| Sierra |
18-1950-1 / 18-1951-1 |
|
|
|
HGE 7234 (port)
|
|
/ HGE 7235 (starboard)
|
|
|

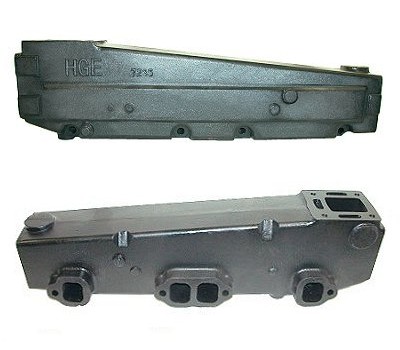

Mercruiser Log Manifold
Click here for log manifold installation tips.

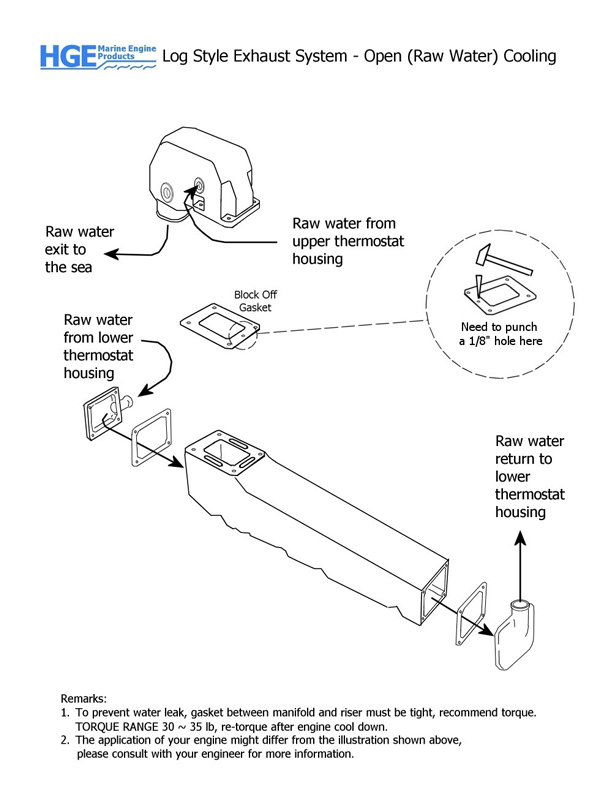

Raw Water Cooling

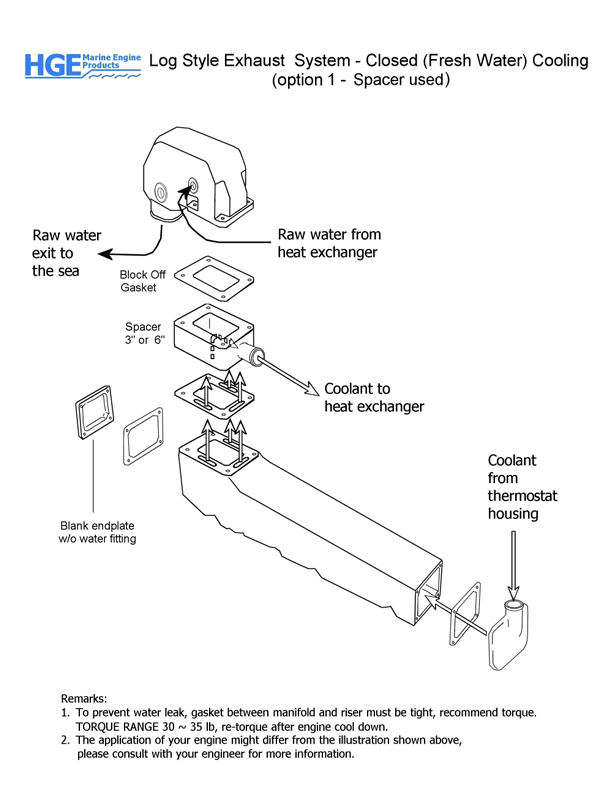

Fresh Water Cooling - Option 1 (Spacer used)

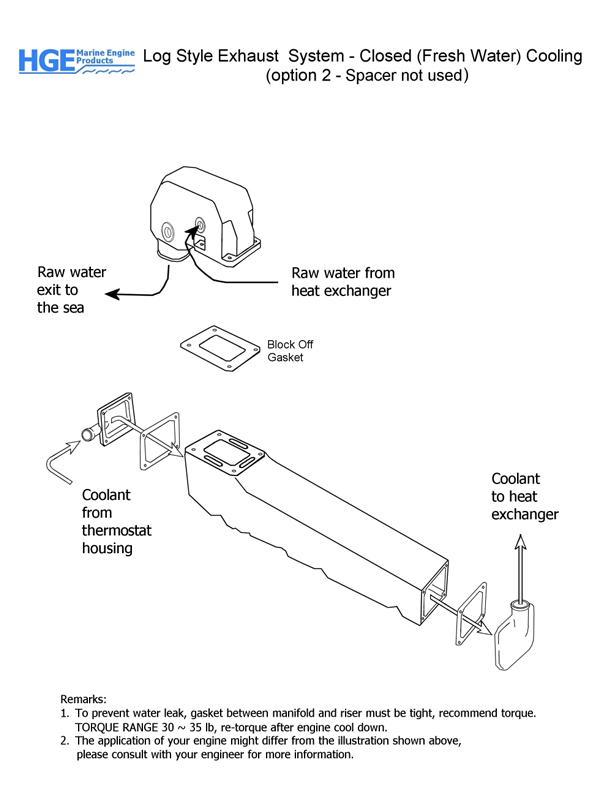

Fresh Water Cooling - Option 2 (Spacer not used)
|
The manifold fits to following engines
| Engines |
|
| Mercruiser GM small block V8 |
305 - 350 cu.in. Models 198, 228, 255, 260 and 898 inboard and stern-drive units. |
|
| Risers |
|
|
HGE 6351
|
3" exhaust outlet, 90° down angle Mercruiser Log Riser (stern-drive). |
| MC-20-76771 |
3" exhaust outlet, 0° angle riser (inboard). |
|

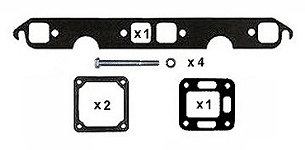

| Mounting Kit (included in the package) |
|
 |
| Kit No. HGE7234MK |
| Content |
Qty |
| HGE0000 - Manifold Gasket |
1 |
| HGE48043 - End Gasket |
2 |
| HGE52076 - Riser Gasket (open) |
1 |
Bolt 3/8" 16UNC x 5" + Lock Washer |
4 4
|
|
|
|
|
